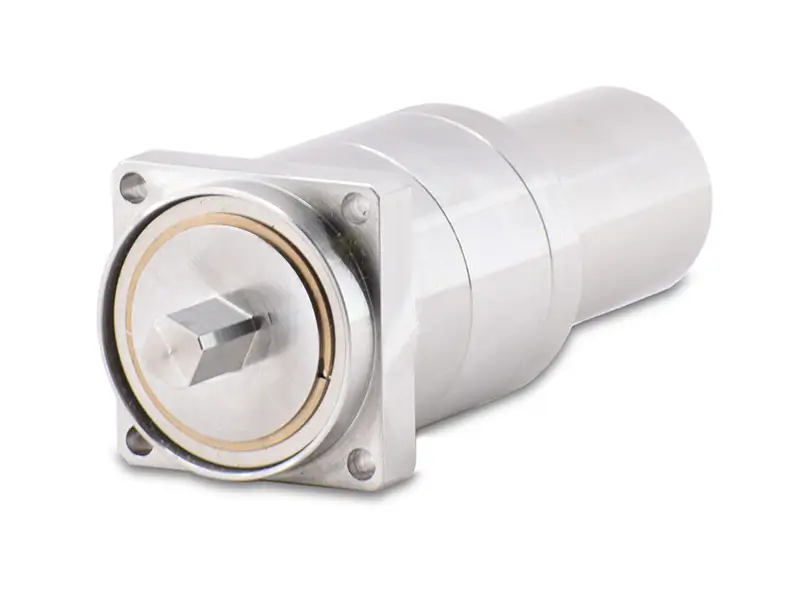

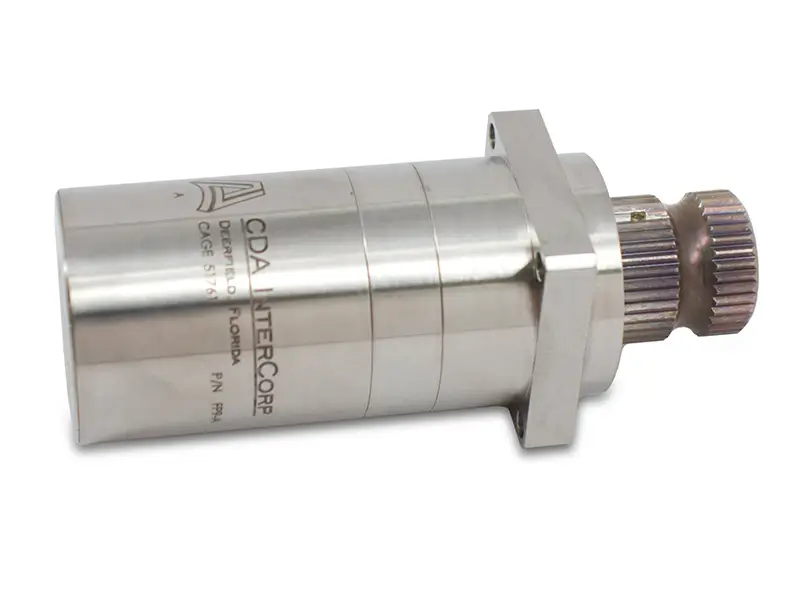

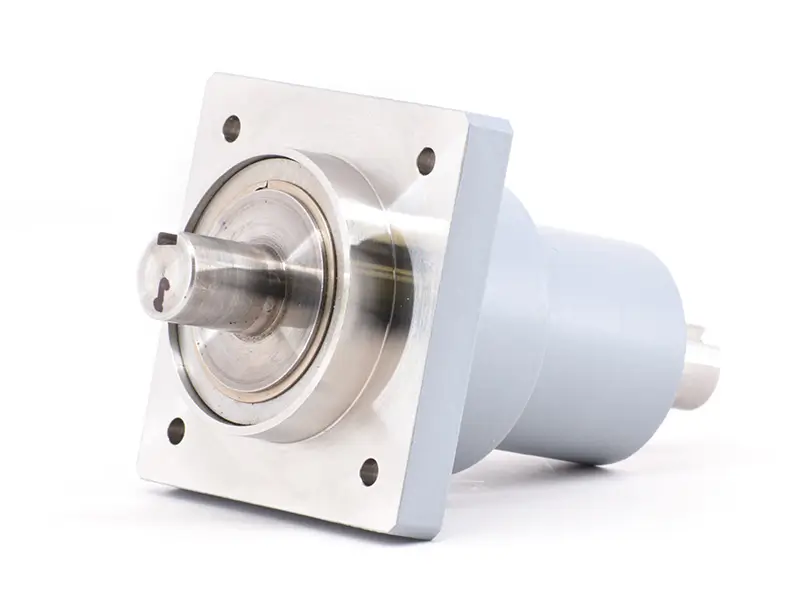

Eddy Current Dampers
CDA’s eddy current dampers (ECDs) are built upon our gearmotor heritage and utilize the same materials and processes. They have been used in many space flight and aircraft applications where precise control over motion is required. They can be passive devices that require no additional input to function or active devices with variable damping rates. CDA also offers a cogless configuration for applications requiring minimal drag torques for additional margin at the end of deployment.
Technical Summary
- Standard & Cogless designs available
- Passive or active with lead wire breakouts available
- Input torques up to 3,000 lb-in (339 Nm)
- Diameter from 0.75” (19 mm) to 3” (76 mm)
- Damping rates calibrated for each application
- Precision damping rate control to 5%
- Designed for extreme shock and vibration loads
- Pre-outgassed for space flight upon request
- Operational temperature -269 °C to +260 °C
- Radiation resistant
- Unlimited damping rates
- Right angle gearboxes available
Want to know more about our products?
Call us at (954) 698-6000 or fill out the form to have a member of our sales team reach out about your project.
When it has to work
We support missions where components must work every time, because if they don’t, the mission may fail and lives may be lost. That’s critical engineering at work. That’s fifty years of space, downhole oil & gas, and defense heritage. That’s CDA InterCorp.
